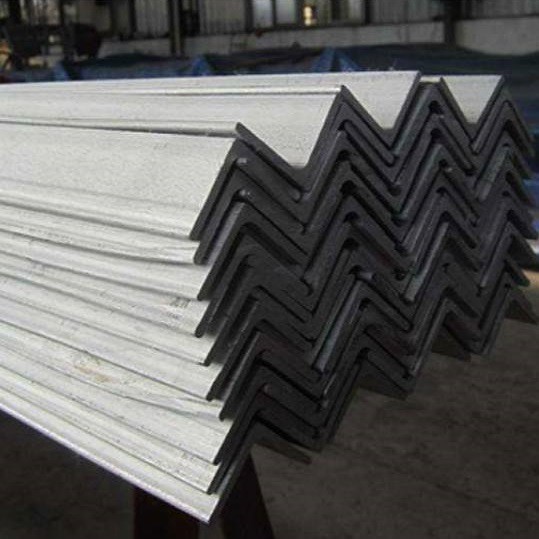

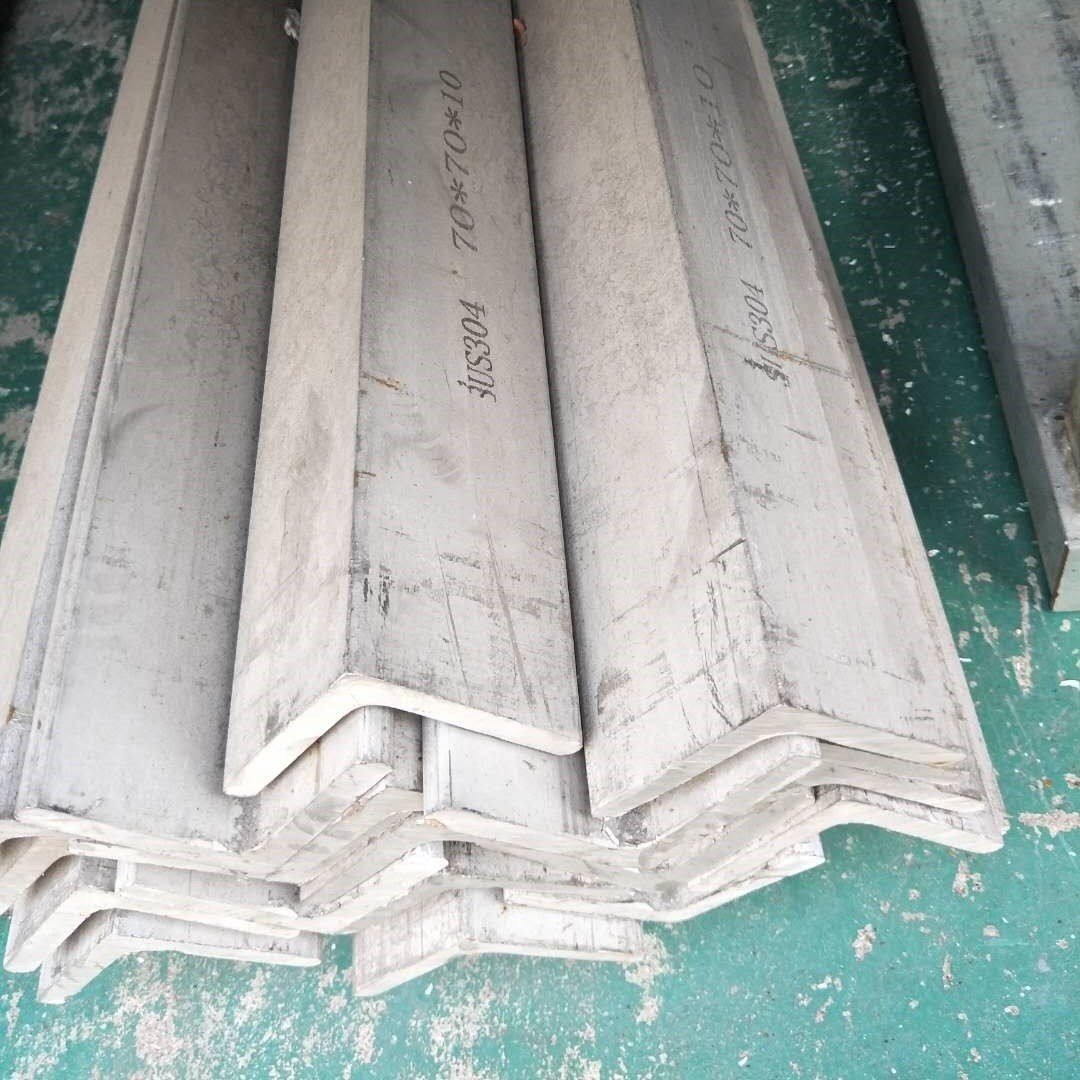

304 316L 310S Stainless Steel Angle Bar Equal/Unequal
304 stainless steel angel bar
Equal angel steel bar and unequal angle steel bar
Stainless steel angel bar:long strips of steel perpendicular to each other in the form of angles
Stainless steel equal angel bar/stainless steel unequal angel bar
Product description of stainless steel angle bar
| Product Name | Stainless steel angel bar |
| Material | 304 316 310s 2205 |
| Price term | FOB/CIF/CFR/EXW |
| Standard | AISI ASTM JIS |
| Packing | According to the requirements |
| Certifactions | ISO/SGS/BV |
| Delivery time | 5-10 days,Based on stock and order quantity |
| Payment term | 30% deposit by T/T,70% before shipment |
Chemical composition
Application
Angle steel can be made up of various bearing members according to the different needs of the
structure,and can also be used as a joint between members
Widely used In various construction structures and engineering structures, such as building
beams, Bridges,transmission towers, hoisting and transportation machinery, ships, industrial
furnaces, reaction towers, container racks, cable trench supports, power distribution pipes, bus
support installation,and warehouse shelves
Size
Specification
(side length * thickness)mm | Quality(kg/m) | Specification
(side length * thickness)mm | Quality(kg/m) |
| 20*3 | 0.89 | 80*5 | 6.21 |
| 20*4 | 1.15 | 80*6 | 7.38 |
| 25*3 | 1.12 | 80*7 | 8.53 |
| 25*4 | 1.46 | 80*8 | 9.66 |
| 30*3 | 1.37 | 80*10 | 11.87 |
| 30*4 | 1.79 | 90*6 | 8.35 |
| 36*3 | 1.66 | 90*7 | 9.66 |
| 36*4 | 2.16 | 90*8 | 10.95 |
| 36*5 | 2.65 | 90*10 | 13.48 |
| 40*3 | 1.85 | 90*12 | 15.94 |
| 40*4 | 2.42 | 100*6 | 9.37 |
| 40*5 | 2.98 | 100*7 | 10.83 |
| 45*3 | 2.09 | 100*8 | 12.28 |
| 45*4 | 2.74 | 100*10 | 15.12 |
| 45*5 | 3.37 | 100*12 | 17.9 |
| 45*6 | 3.99 | 100*14 | 20.61 |
| 50*3 | 2.33 | 100*16 | 23.26 |
| 50*4 | 3.06 | 110*7 | 11.93 |
| 50*5 | 3.77 | 110*8 | 13.53 |
| 50*6 | 4.46 | 110*10 | 16.69 |
| 56*3 | 2.62 | 110*12 | 19.78 |
| 56*4 | 3.45 | 110*14 | 22.81 |
| 56*5 | 4.25 | 125*8 | 15.5 |
| 56*8 | 6.57 | 125*10 | 19.13 |
| 63*4 | 3.91 | 125*12 | 22.7 |
| 63*5 | 4.82 | 125*14 | 26.19 |
| 63*6 | 5.72 | 140*10 | 21.49 |
| 63*8 | 7.47 | 140*12 | 25.52 |
| 63*10 | 9.15 | 140*14 | 29.49 |
| 70*4 | 4.37 | 140*16 | 33.39 |
| 70*5 | 5.4 | 160*10 | 24.73 |
| 70*6 | 6.41 | 160*12 | 29.39 |
| 70*7 | 7.4 | 160*14 | 33.99 |
| 70*8 | 8.37 | 160*16 | 38.52 |
| 75*5 | 5.82 | 180*12 | 33.16 |
| 75*6 | 6.91 | 180*14 | 38.38 |
| 75*7 | 7.98 | 180*16 | 43.54 |
| 75*8 | 9.03 | 180*18 | 48.63 |
| 75*10 | 11.09 | 200*14 | 42.89 |
| | | 200*16 | 48.68 |
| | | 200*18 | 54.4 |
| | | 200*20 | 60.06 |
| | | 200*24 | 71.17 |
