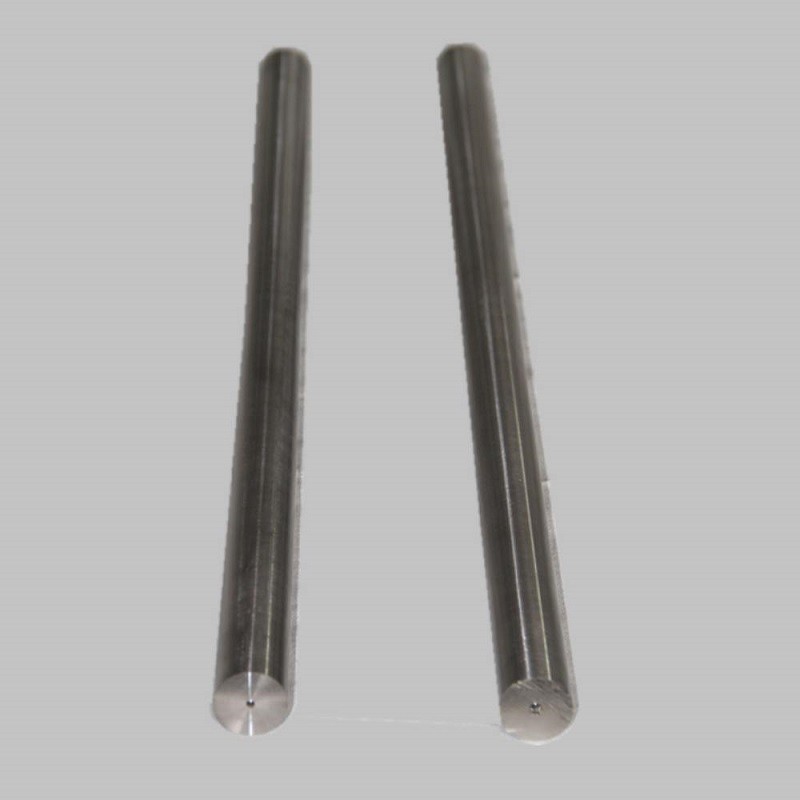

Grade 2.4066 / Alloy 200 / UNS N02200 Pure Nickel Alloy Bars Custom Free Cutting Any Length

Name: Grade 24066 Alloy 200 UNS N02200 Pure Nickel Alloy Bars Custom Free Cutting Any Length
Brand: DELTA
Price: 24 USD

Quality Grade 2.4066 / Alloy 200 / UNS N02200 Pure Nickel Alloy Bars Custom Free Cutting Any Length wholesale

Brand Name : DELTA

Model Number : 2.4066 2.4068 Alloy 200 Alloy 201

Certification : ISO

Place of Origin : China

MOQ : 500 kgs

Price : 24-35USD/Kg

Payment Terms : L/C, T/T, Western Union

Supply Ability : 3 Ton per week

Delivery Time : 5 - 12 days based on the quantity

Packaging Details : standard packing for export

Products : Nickel bar

Grade : 2.4066 2.4068 Alloy 200 Alloy 201

Diameter : 4 - 200mm

Length : custom any length as request

Standard : ASTM EN

Service : Cutting

Loading Port : Shanghai Port

Surface : bright

Contact Now

Grade 2.4066 / Alloy 200 / UNS N02200 Pure Nickel Alloy Bars Custom Free Cutting Any Length

Specification of Nickel Bar

Name	Nickel Round Bar
Grade	Alloy 200 / Alloy 201 / 2.4068 / 2.4066
Density	8.9g/cm3
Diameter	4 - 200mm or other special diameter as request
Length	1m 2m 3m 4m 6m or cutting any length free
Surface	Bright
Lead time	7 to 10 working days after the receipt of deposit
Other Shape	Plate, Pipe, Flat Bar, Coil
MOQ	50 kgs
Payment terms	30%TT for deposit, 70% balance before shipment
Price Term	FOB,CIF,EXW
Port of Loading	Shanghai Port
Deliver method	By Sea, UPS, DHL, Fedex
Packing	standard packing with plastic bags and strapped bundles, and can be customized; In bundles tied with steel strips. End plastic
Packing	caps, external packing by PVC or according to customer's request

MATERIAL DESCRIPTION

Material 2.4066 is an unalloyed, technically pure nickel. The material has a high corrosion resistance and excellent resistance to alkaline media. In addition, 2.4066 (Alloy 200) has good mechanical properties over a wide temperature range.

This material also offers good resistance in oxidising and reducing conditions as well as high ductility. Good thermal conductivity and excellent resistance to a range of corrosive media, acids and natural salt solutions finish off the positive material properties of 2.4066.

200 Nickel Round Bar Chemical Composition

Grade	C	Mn	Si	Cu	S	Fe	Mo	Ni	Cr
Nickel 200	0.15 max	0.35 max	0.35 max	0.25 max	0.01 min	0.40 max	–	99 min	–

Nickel Alloy 200 Rods Mechanical Properties

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
8.9 g/cm3	1446 °C (2635 °F)	Psi – 67,000 , MPa – 462	Psi – 21,500 , MPa – 148	45 %

AN OVERVIEW OF THE PROPERTIES OF 2.4066:

High corrosion resistance
Good mechanical properties (over a wide temperature range)
Resistance to alkaline media, corrosive media, acids and natural salt solutions, among others
Resistance to oxidising and reducing conditions
High ductility
Good thermal conductivity

APPLICATIONS

Chemical and petrochemical industry
Food industry
Transport systems for chemical agents

Other Nickel Alloy Grade

DIN	WERKSTOFF NR.	UNS	Grade
Ni 99.2 LC-Ni 99	2.4066 2.4068	N 02200 N 02201	NICKEL 200/201
NiCu 30 Fe	2.4360	N 04400	MONEL 400
NiCr 20 CuMo	2.4660	N 08020	ALLOY 20
NiCr 21 Mo	2.4858	N 08825	INCOLOY 825
NiCr 29 Fe	2.4642	N 06690	INCONEL 690
NiCr 25 FeAIY	2.4633	N 06025	ALLOY 602 CA
NiCr 15 Fe	2.4816	N 06600	INCONEL 600
NiCr 23 Fe	2.4851	N 06601	INCONEL 601
NiCr 21 Mo 14W	2.4602	N 06022	HASTELLOY C22
NiCr 23Mo 16Al	2.4605	N 06059	ALLOY 59
NiMo 16 Cr 15W	2.4819	N 10276	HASTELLOY C 276
